XK300 CNC Router 4 Axis From Mini CNC Manufacturer
(1). Milling CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas
(2). High performance 4 axis cnc milling controller,Optional siemens 808D or GSK980MDc cnc controller.
(3). ARM 9 CPU+FPGA,Ethernet network interface,Support B macro function,PLC function,Mutil-language library function.
(4). USB and RS232 port, DNC function of USB.
(5). The standard spec includes MPG hand wheel.
(6). By MPG handwheel convenient electronic control of each axis of movement.
(7). Selection of high -quality casting materials,more compact.
(8). A collection of double-nut ball screw, bearings and couplings with high precision positioning, while adding an automatic oil lubrication system, to protect your machine precision, extended service life.
(9). 220V single-phase AC power supply.
(10). Safety electrical components of high quality and fast plug.
(11). Pre-installed fourth axis fast interface.
(12). With sink and nozzles.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
X axis travel 300mm
Y axis travel 175mm
Z axis travel 270mm
Table size 450*160mm
Spindle taper MT3/R8
Tool DIA. range 4-16mm
T slot (amount*width) 3*12mm*43mm
Positioning accuracy 0.03mm
Repeatability accuracy 0.02mm
Control system Adtech 4640,Optional siemens 808D or GSK980MDc cnc controller
Instruction DXF+G code template function, converting DXF automatically to G code for processing
MPG hand wheel 4 axis
Spindle motor 1100W(1.5kw optional)
Spindle speed 100-3500r/min(24000r/min optional)
The max moving speed 2500mm/min
The max feeding speed 1500mm/min
Power of X/Y 4Nm/400W
Power of Z 6Nm/750W
Transmission ball screw
Max. load 40kg
Table structure Full cast iron
Power 230/120V
Weight(NW/GW) 300/350kg
Overall dimension 900*950*1750mm
Packing size 1100*1040*2000mm

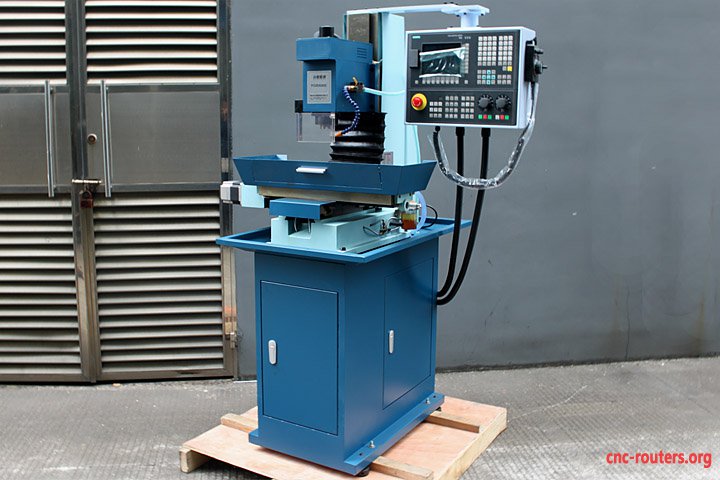

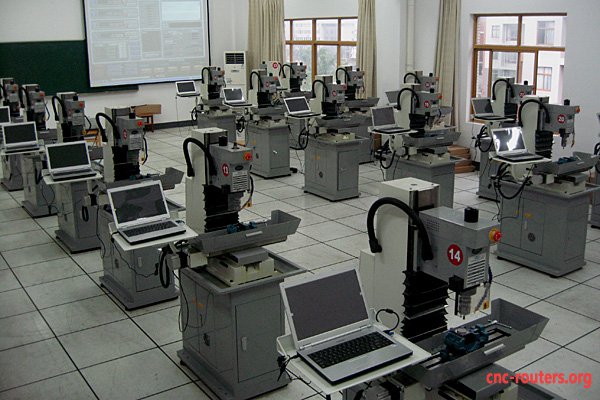

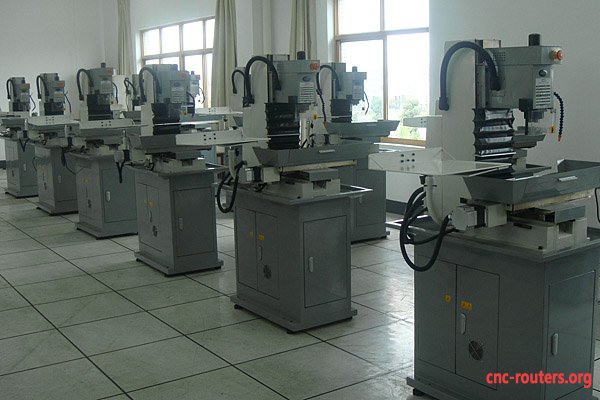

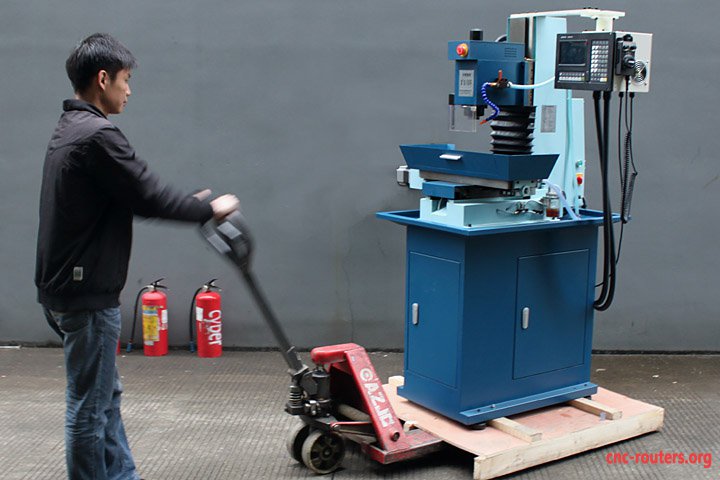

Product Image
About Yornew Automation Equipment Co., Ltd.
We research and develop micro cnc machine , electrical automation, mechatronics, industrial robotics, vocational teaching equipment independently, can also design solutions and product customization processing according to customers specific requirement. ,In a rapidly changing era while keeping up the pace of industrial, solid work based on the development and manufacturing of machinery.feel technology distance between the Japan and South Korea since the company was founded,as a support industrial technology and manufacturing machine tools proud, but also recognize that its major responsibilities, for the effort and work in the machine tool industry and lead the Yornew provide benefit for customers with high quality products and services
