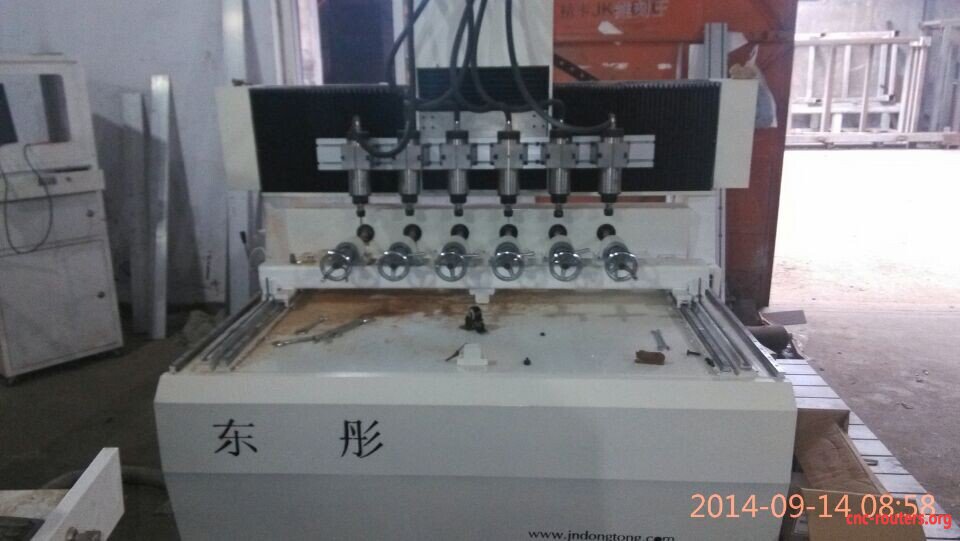

4 axis CNC router engraving machine with flat-rotary
Feature:
1. Machine DT8025-6 is specialized in processing three-dimensional (3D) and complicated process ;such as 360 degree rotary for engraving human body, Sculpture, craft, furniture, jade, ceramic, clay etc.
2. The lathe bed has good stiffness and non-deformation ,which is made up with thick-walled square pipe by welding process, table-moving, and stabilized by relief of internal stress treatment later on.
3. Screw drive, servo motor, high power and high precision.
4. Four-axis control system : Weihong 74A series with hand wheel.

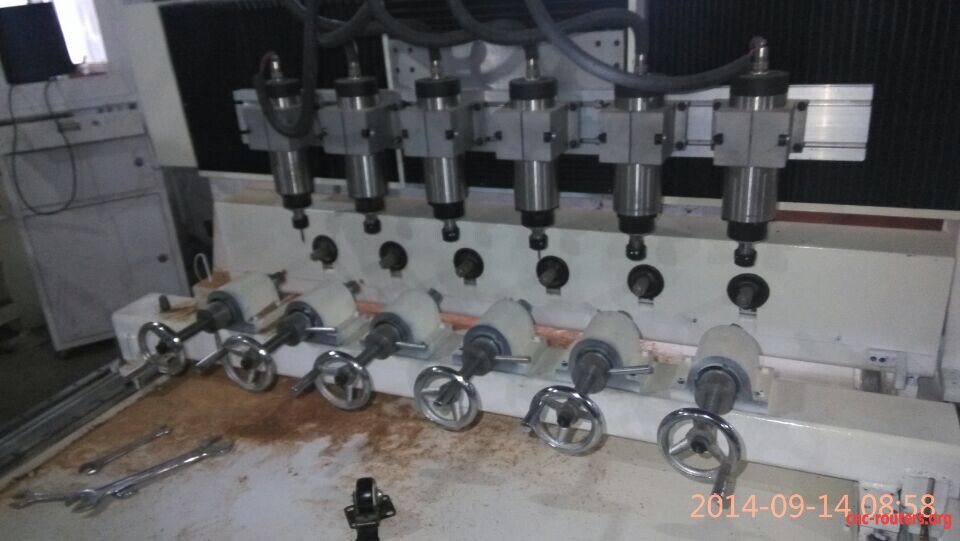

5. Spinner consists of holding chuck and dead center whose concentricity between 0.05-0.1MM which
6. All specification can be customized.
NO
Performance index
Performance index
Parameter
Optional
1
Working area
X axis
1000mm
500-3000mm
Y axis
2500mm
500-2500mm
Z axis
300mm
200-1000mm
2
Turning diameter
800mm
260-1200mm
3
Accuracy
Processing precision
0.02mm
Repositioning precision
0.02mm
4
Drive mode
X axis
Screw
Y axis
Screw
Z axis
screw
5
Speed
Max travel speed
30000mm/min
Max engraving speed
15000mm/min
6
Spindle(air-cooling)
Spindle power
2.2KW
1.5KW—5.5KW
Spindle speed
0—24000r/min
7
Running mode
Servi
8
Working voltage
AC220-380V/50HZ
9
Machine size
3500*2000*3000
10
Operating system
Original weihong74A
11
Net weight
3200KG
All specification can be customized
