Detailed Description
E-Lins H750 series is wireless multi-sim WiFi fastest 4g router, WiFi, GPS, and Serial supported. H750 4g lte mobile router covers:
Model
Version
Supported Networks
H750t
4G LTE, dual sim
FDD LTE + TDD LTE, back compatible to 3G and 2G
H750w
3G WCDMA, dual sim
DC-HSPA+, HSPA+, HSUPA, HSDPA, UMTS, back compatible to EDGE/GPRS/GSM
H750ev
3G CDMA2000, dual sim
EVDO Rev B, EVDO Rev A, EVDO Rev O,back compatible to CDMA1x
H750td
3G TD-SCDMA, dual sim
TD-HSUPA, TD-HSDPA, back compatible with EDGE/GPRS/GSM
H750 4g bonding router supports two sim card, switching freely. Two sim cards can be different carriers. With SSH, Telnet, Web, and remote management system, H750 can be friendly and easily managed. With the link backup feature, H750 switch between mobile networks, land line and WiFi client smoothly and freely, which brings the stability and reliability. With H750 3g 4g mobile broadband router' high-performance feature such as fast Ethernet port, serial port, VPN, DDNS, GPS, and port forwarding, users can build wireless solution easily and fast.

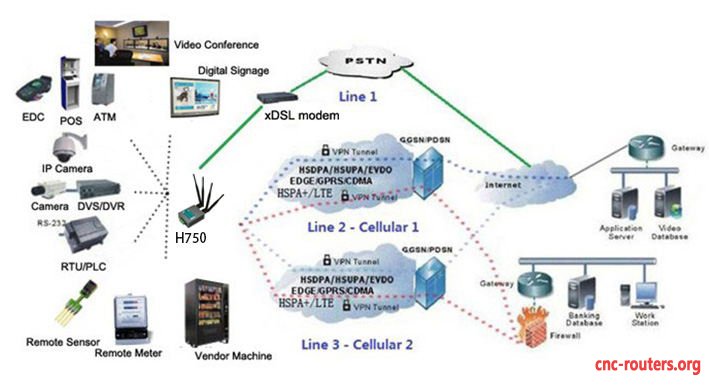

Typical Topology
How to choose a wireless multi sim WiFi router?
In the Internet age, both life and industry cannot be separated from the network, which shows that the position of wireless multi sim 4g router can not be underestimated. What kind of wireless lte broadband router is suitable? Facing so many choices, it is really difficult for people to choose, today let ELINS help you:1. BrandWe must choose products of big brands because it is the system that decides the performance of a wireless router. ELINS industrial 4G router on the basis of the demand of wireless network, adopting the latest hardware system platform, using the new, more excellent-performance Internet of things wireless communication router products developed by Linux software system with its latest technologies. It adopts industrial grade design standard and is mainly applied to data transmission service of industry users.2. OperationThe wireless multi sim WiFi router supports various configurations like WEB/Telnet/Console, in which users are faced with WEB graphical management interface, which is convenient and simple to manage.You can always find the best and fastest 4g broadband router at E-Lins!
Wireless Multi Sim WiFi Router Specification
Wireless
Compatible Mobile Networks
4G ( FDD LTE, TDD LTE)
3G WCDMA (UMTS,HSUPA, HSDPA, HSPA+, DC-HSPA+)3G CDMA2000 (EVDO Rev 0, Rev A, Rev B)
3G TD-SCDMA (TD-HSDPA, TD-HSUPA)
2G GSM (EDGE,GPRS)
2G CDMA1x
Bandwidth
4G LTE
FDD LTE:100Mbps or 150Mbps or 300Mbps downlink, 50Mbps uplink;TDD LTE: 150Mbps downlink, 50Mbps uplink;
DC-HSPA+:Downlink42Mbps,Uplink5.76Mbps;
HSPA+(H):Downlink21Mbps,Uplink5.76Mbps;
HSPA+(L):Downlink14.4Mbps,Uplink5.76Mbps;
HSUPA:Downlink7.2Mbps,Uplink5.76Mbps;
HSDPA:Downlink 7.2 Mbps,Uplink384k bps;
WCDMA/UMTS:Downlink/Uplink 384 kbps;
CDMA1x:Downlink/Uplink153.6kbps;
CDMA EVDO:Rev B: 14.7Mbps downlink, 5.4Mbps uplinkRev A: 3.1Mbps downlink, 2.4Mbps uplink
Rev O: 2.4Mbps downlink, 153.6kbps uplink
3G TD-SCDMA: 2.8Mbps
EDGE:Downlink384 kbps,Uplink 118 kbps;
GPRS:Downlink108 kbps,Uplink 42.8 kbps;
Notes: the bandwidth is peak value. Real value depends on carrier network support.
Cellular Frequency
4G FDD LTE:
Band 1--2100Mhz
Band 2--1900Mhz
Band 3--1800Mhz
Band4—AWS(1700/2100Mhz)
Band 5--850Mhz
Band 7--2600MHz
Band 8--900Mhz
Band 12--700Mhz
Band 13--700(B13)Mhz
Band 17--700(B17)/AWS
Band 19—800Mhz
Band 20--DD800Mhz
Band 21
Band 25–1900Mhz G Block
Band 31– 450MhzOther FDD band…
4G TDD LTE (TD-LTE):
Band 41– 2500/2600Mhz
Band 40 --2300Mhz
Band 39– 1900Mhz
Band 38 --2600Mhz
Other TDD band…
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD):850/1900/2100 MHz, option for 850/900/1900/2100Mhz/1700Mhz/AWS;3G TD-SCDMA:2010~2025MHz/1880~1920MHz
Quad-band EGSM 850/900/1800/1900;
CDMA1x/EVDO: 800/1900Mhz, option for 450Mhz;
Notes: 4G LTE has many different band andfrequencies. Please confirm the detailed band and frequency with your carriers before order.
Network and Band Lock Feature (Option)
Default is unlocked, can use this feature to lock
Main Features and Performance
USB Host
No, can ODM
SMS/Voice
SMS/Voice call to control router to be online, offline, reboot and status monitor; SMS is default feature, Voice is option;SMS text sending and receiving;
GPS (Option)
GPS feature
DTU (Option)
With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option).
Details:
Serial Baudrate: 300bps, 600bps, 1200bps, 2400bps, 4800bps, 9600bps, 19200bps, 38400bps, 57600bps, 115200bps;
Serial Parity: none, even, odd;
Serial Databits: 7, 8;
Serial stopbits: 1, 2;
Serial flow control: none, hardware, software;
Mode: Server (up to 4 server centre, can OEM to be more), Client;
Protocol: TCP, UDP ;
Heart Beat : Yes;
VPN
PPTP, L2TP, IPSec, GRE, Tunnel(PPTP server, PPTP client, L2TP client, IPSec client, IPsec server), OpenVPN is option
OpenWRT (Option)
Optional
VRRP (Option)
Optional
Route
Static Route;
Optional for Dynamic Route (BGP, BGPD, OSPF, Zebra, Rip);
SNMP
Support V1, V2. V3
VLAN
Support multi-LAN IP address, support two IP address
Wi-Fi
Optional,802.11b/g/n; 300Mbps.
Can be used as AP and client;
Frequency from 2.4GHz to 2.483GHz,Access Points,Routers and Gateway Server Applications, wireless up to254 PC users
Fail Over Redundancy (network Backup feature)
Auto-dial feature, keep alive link;
LCP, ICMP check;
Built-in watch dog;
Dual cellular (2G/3G/4G), RJ45 WAN (xDSL, DHCP, Fixed IP), WiFi client four line redundancy;
Cold Backup is default, Hot Backup is option;Cold Backup=WAN RJ45 and Cellular WAN not online at the same time. One line online and the other line standby, switch freely with triggers;
Hot Backup=WAN RJ45 and Cellular WAN are online at the same time. Data goes the main line, and switch to the other line. Hot Backup switch time is shorter than Cold Backup.
POE (option)
POE for LAN/WAN RJ45 (use with POE adapter)
Firmware update
support firmware update locally or remotely (LAN, WiFi and OTA WAN)
Syslog
local and remote
DDNS
Yes
DHCP Server
Yes
Internal Battery
Optional (8000mAH, 4000mAH *2)
Others
DNS proxy;
Optimized EMC design;
Real-time clock (NTP, support update with defined hours);
WAN/LAN/Memory statistics;
Local/remote profiles backup and retrieve;
Firewall;
Remote Management System
Option
Interface
LAN/WAN
10/100M LAN port (RJ45 interface) * 3
10/100MWAN port (RJ45 interface) * 1
WAN ports supportCell/Static IP/DHCP/PPPoE (on demand, keep alive, schedule, manual)
Antenna
4-8X antenna (50Ω SMA female interface, detachable):
Wi-Fi*2
Cellular*2-4
GPS*1-2
Cellular support MIMO(Diversity Receiving) option;
WiFi support MIMO (Diversity Receiving) option;
Led
SYS
WiFi
Cell1
Cell2
Cell Signal1
Cell Signal2
LAN (10/100M) 1, 2, 3, 4
WAN
CHR (Internal battery charging) (for version supports internal battery)
Button
Reset
Console
1 console port (also can be used as M2M port)
Serial port
RS232 or RS485 with DB9 and Terminal Block interface
IO Port(option)
2
Management
Easy to use and management;
Web/Telnet/SSH/CLI, support remote management
SMS;
SNMP;
RMS (Remote Management System)
At command
Supported
UIM/SIM Card Slot
Support1.8V/3V UIM/SIM cards, two sim card slot
DC Jack
Two types of input jack for DC
2.5mm DC jack * 1
Terminal Block * 1
Power
Power supply
DC5V-50V / DC5V-60V , typical DC 9V1A or 12V1A,12v CAR USE;
DC5V~40V is the default, DC5V~50V is the option
Current
Idle: about 140mA@12VDC
Communication: about 300mA@12VDC
Software
Device Management
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chome, Opera, Sarafi, etc.)
Minimum System Requirements
Windows, Linux, Mac OS, IOS, Symbian, Android, other OS support web browser;
Network Interface Card
Physical
Operating Temperature
Storage Temperature: -40 ~ 85°C
Working Temperature: -30 ~ 75°C
Humidity
95% Maximum (Non-condensing)
Dimensions
H750 Model
PCBA: 100mm x 80mm x 22mm
With case:102mm x87mm x 35mm
Weight
H750 Model
330g (not including the antenna)
Color
Metal Gray-Black, OEM is available
Others
Warranty
1 Year default.Option extends to 5 years maximum.
Package Contents
H750 Series Dual Sim 4G Router
Ethernet Cable
Power Adapter
Antenna
Others depends on option features
