5 Axis CNC Router
Product Details:
Jinan Hopetool CNC Equipment Co.,Ltd is one of the leading China 5 axis cnc router manufacturers and suppliers, welcome to check 5 axis cnc router price with us.

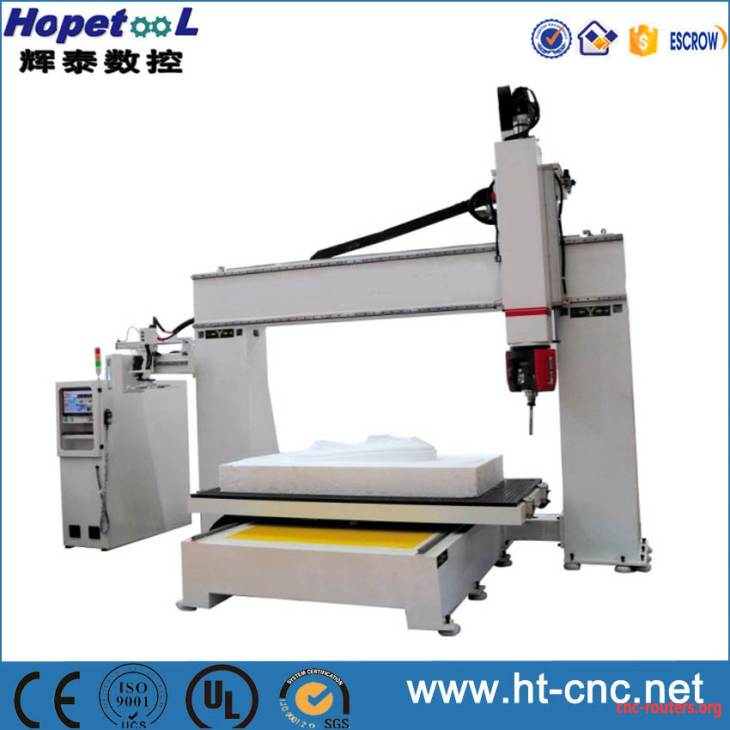

5 axis CNC router
Product Description
Applications
1. Mold industry: various large metalloid mould, especially suitable forautomotive foam mold, wooden ship model, wooden model aviation, railwooden mould, wooden mould train.
2. Instrument industry 3-d surface engraving and shape cutting of large-scale instruments.
3. Sign, plastics, wood, molds, etc.
4. Furniture, general woodworking manufacturing.
Feature
1. Italy OSAI controlling system, steady performance, powerful function,easy operation
2. Well-known Italy HSD air cooling spindle, high precision, long life time, steady working
3. Well-designed whole cast steel lathe bed, well welded, no distortion for whole structure.
4. Adopt Japan THK linear square guide rail system, working steadily, high precision, long life time.
5. Movable table structure, working more steadily than that with moving gantry, especially while engraving waved plate.
6. Diversified controlling. It can control working speed, air line speed and cutter setting speed separately which improves both processing quality and efficiency.
7.6 pcs Auto tool changers.
Technical Parameters
Model
HT- I224-X5
Maximum working size
X Axis:1800mm
Y Axis : 3100mm
Z Axis: 950mm
A Axis: ±120°
C Axis: ±213°
Maximum work-piece
size
X Axis: 1200mm
Y Axis: 2400mm
Z Axis: 550-600mm (depending on tool length)
A Axis: ±120°
C Axis: ±213°
Table Size
1250x2500mm
Table structure
Cast Steel Movable Table
X,Z Structure
Japan-made THK Guide rail: X 30, Z 25 Germany-made rolling ball screw
Y Structure
TaiWan HIWIN Guide rail:30 Rack and pinion
Spindle
7kw, Italy HSD spindle, air-cooled
Magazine
Disc-type ATC
Taper hole in the spindle
HS655
Auto-Tool changers
6 pcs Automatic tool changers
Diameter of Cutter
φ3.175-φ12.7
Spindle Speed
1000-1800022000r/min, variable speed
Working Voltage
AC220V/60Hz 3-phase or AC380V 60HZ 3-phase
Motor and driver
Japan-made YASKAWA
Inverter
Taiwan-made Delta inverter
Command
G code
Controller
OSAI
Software
Original Alphacam
Dust-collect function
No
Working table
T-slot table and aluminium table coated with pvc
Net weight
7500kg
Gross weight
7600kg
Machine size
3600*4000*3500mm

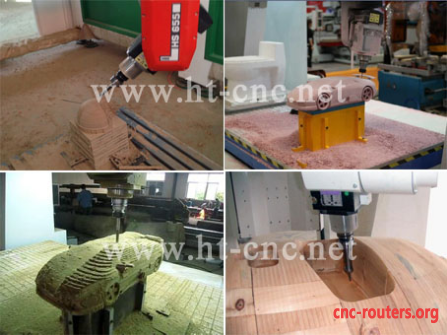

Working sample
