Quick Detail
Place of Origin
China [CN]
Brand Name
Boshang
Model Number
WT-650G-HB
HS-CODE
8422-30
Package & Delivery Lead Time
Package
Woodencase with inner PE film
Delivery Lead Time
15-30 working days after received 30% deposit
Detailed Description
Detailed Product Description
Application Industry: Beverage, Chemical, Commodity, Food, Medical Voltage: 220V 50 / 60 Hz
Logo: Boson Production Speed: 4000-8000B/H
Label Precision Of Bottle: ±1mm Within Bottle Width/ Diameter: 30-110mm
Labels Roll Inner Diameter: 76.2mm Labels Roll Outer Diameter: Max330mm
Item: Sticker Front And Back Labeling Machine Labeling Height: 195mm (standard)
Conveyor Width: 100mm Place Of Orignal: Guangzhou
Warranty Of Machine: One Year
Machine Oil Bottle Label Applicator Detergent Front And Back Labeling Machine
Technical Parameter
Production speed 45m/min
Labeling accuracy ±1mm
Label max width 190mm(can be raised according to the require)
Bottle diameter Thickness≥30mm height≤500mm
Label inner diameter 76.2mm
Label outer diameter Max330mm
Outline size L3048×W1700×1500mm
Weight 380KG
Using power 380/220V 50HZ 3000W
Applications
1 , The automatic labeling machine is suitable for square bottles or flat bottles with double sided and one side in Daily chemical, food and drinks ,beverage ,pharm ,machine oil industries
2 , We can accept custom according to your bottle labeling requirement
3 , The machine widely used daily chemicals, petroleum, machine oil, cleaning supplies, food and beverage, pharmaceutical and so on
4 , Can quickly switch to a different size bottle , simple to cooperate,orderliness beautiful, clean, easy to wash
Product Characteristic
1 , The automatic labeling machine is suitable for square bottles or flat bottles with double sided and one side
2 , The labeling head can be adjusted at eight orientations ,so the machine can be adjusted successfully in several minutes for any bottle.
3 , The pressure between the active axle and the press roller can be adjusted ,so the running direction of the label can be adjusted freely .the label is only pressed flexibly without causing any distortion.
4 , The machine is designed with large-power and strengthening structure.
5 , The touch screen based human interface in Chinese and English with the online helping system makes it easy for operate the machine for the workers .the press belt is geared into the main transporting line ,so it makes the two transporting lines work in synchronous absolutely .
6 , The labeling head adopts the structure of the double press rollers .it guarantees that the label is pulled tightly but isn't broken because of the underneath paper die-cutting, the separated clutch makes the strain more balanced.
7 , The machine apply the famous server motor, so it realizes real closed loop controlling and it avoids the phenomenon of “the blind man walk” when the machine apply the stepper motor.
8 , The muti channel encoder detects labeling position precisely at high speed
9 , The label is pressed by a flap after applying on bottle and is pressed by the active and passive sponge rollers.So when the label is stuck it hasn’t any air bladder.It is especially applicable to the crystal bottles labeled with transparent labels.
10 , The optional air driving and roller labeling set can label round bottles precisely.
Remarks:My name is Mr. Bill,If you are interested in our factory automatic sticker labeling machine, please feel free to contact me by WahtsApp/Skyp:+86-15083593609 or E-mail:[email protected],Sincerly Thank you very much!

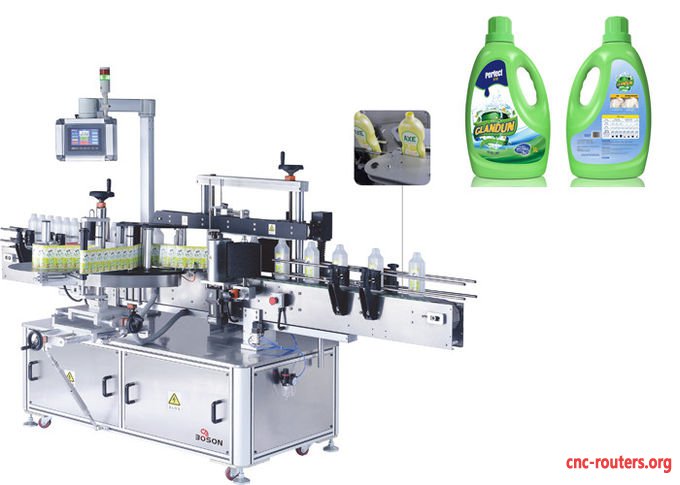

Labeling machine picture
