Quick Detail
Place of Origin
China [CN]
Brand Name
Boshang
Model Number
WT-620G6
HS-CODE
8422-30
Package & Delivery Lead Time
Package
Woodencase with inner PE film
Delivery Lead Time
15-30 working days after received 30% deposit
Detailed Description
Detailed Product Description
Function: Sticker Labeling Accuracy Labeling: ±1mm
Driven Type: Electric Bottle Diameter/width: 30-110mm
Manufacture Speed: 200BS/Min Label Max Width: 190mm
Packaging: Woodcase With PE Firm

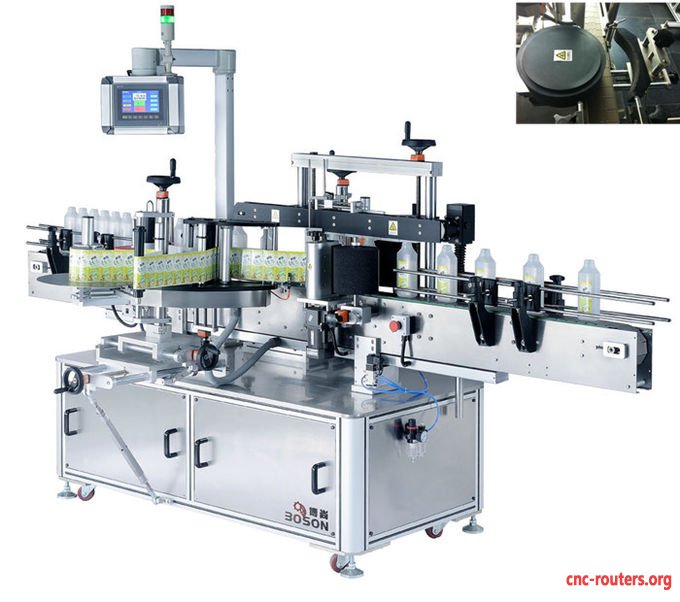

Full automatic Self adhesive Square Wrap Around Labeler machine
Technical Parameters
Production speed 200BS/min
Labeling accuracy ±1mm
Label max width 190mm
Bottle diameter/width 30-110mm
Label inner diameter 76.2mm
Label outer diameter Max330mm
Outline size L23048×W1200×1500mm
Weight 480KG
Using power 380/220V 50HZ 2300W
Suitable for
1 , Suitable for labeling round bottle wrap around labeling and square bottle with multi-sides labeling.one side labeling of square bottle,flat bottle and round bottle
2 , Machine with one set labeling head
3 , Easy to changing the different bottles,jar,can,container.
4 , Main machine parts are made of 304 stainless steel with surface finishing and special treatment, which we can guarantee you very good quality.
5,One side labeling for square /flat bottle speed 5000-8000B/H ; Wrap around label for square bottle 3000-5000B/H; Wrap around label for round bottle speed 5000-8000B/H around
Description
1 , For label: self-adhesive labels, self-adhesive film, electronic supervision code, bar code, etc.
2 , Applicable products: Requires the side plane, side sweeping surface, the circumferential surface attached label.
3 , Industry: Widely used in cosmetics, daily chemical, electronics, pharmaceutical, metal, plastics and other industries.
4 , Application examples: Head & Shoulders shampoo flat bottle labeling, Shell Lubricants flat bottle labeling, labeling and fresh wine.
5 , .Applicable to the pharmaceutical, food, cosmetic and other light industrial products such as oval, square, flat bottles on the single and double sides labeling.
6 , The man-machine interface system is advanced and compatible, easy operation, complete functions, has a wealth of online help function
7 , The bottle dividing device shaped general, any diameter of the bottle without replacement parts, rapid positioning adjustment; bilateral chain correction device ensure the material on the neutral
8 , Special elastic pressing equipment ensure seeding materials stability
9 , Automatic optical inspection, have nothing items come without labeling, and without label automatic correction or alarm and automatic detection function, to prevent leakage and waste
10 , Labeling speed, conveyor speed, sub-bottle speed stepless speed, adjust as needed
11 , The machine has the advantages of simple structure, compact structure, convenient operation and maintenance
