Multi-Lane Sachet Packaging Machine

Multi-Lane Sachet Packaging Machine:Multi-Lane Sachet Packaging Machine Scope of application Suitable for fruit juice drinks, tea bags, oral liquid, milk tea, skin care products, tooth paste, yoghurt, cleaning and washing products, oils, cosmetics, carbonated drinks. Technical parameters N...

  • Biscuit Pillow Packaging Machine
  • Model SPPP-50HW Automatic Powder Packaging Machine (With Wei
  • Automatic Powder Packaging Machine, High Quality Powder Pack
    • Multi-Lane Sachet Packaging Machine
    • Type:CNC Driling machine
    • Country:China
    • Registration Date:2019-01-11 20:05
    • Related Keywords:Multi-Lane,Sachet,Packaging,Ma
    Please click on the button Know more to find out the real product information.

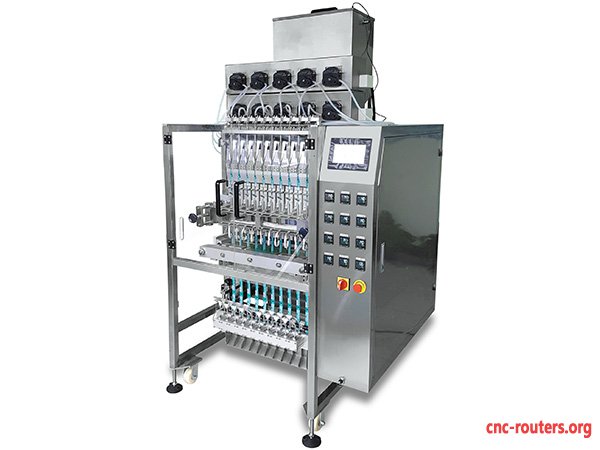

    Multi-Lane Sachet Packaging Machine

    Scope of applicationSuitable for fruit juice drinks, tea bags, oral liquid, milk tea, skin care products, tooth paste, yoghurt, cleaning and washing products, oils, cosmetics, carbonated drinks. Technical parameters

    Name Multi lane 4 side sachet packaging machine Multi lane 3 side sachet packaging machine

    Item & Fill method 1.Liquid&Paste- pump, 2.Granule- Cup, 3.Powder-Auger 1.Liquid&Paste- pump, 2.Granule- Cup, 3.Powder-Auger

    Model SPMP-480 SPMP-720 SPMP-960 SPMP-280 SPMP-560

    Lanes number 2~6 lane 3~10 lanes 4~12 lanes 2~4 lanes 4~8 lanes

    Capacity Max.40 bags/min/lane Max.40 bags/min/lane

    Volume Range 1~ 200ml 1~ 200ml 1~ 200ml 1~ 50ml 1~ 50ml

    Accuracy ±2% ±2% ±2% ±2% ±2%

    Bag size L:45-120MM L:45-120MM L:45-120MM L:45-120MM L:45-120MM

    W:35-120MM W:35-120MM W:35-120MM W:25-70MM W:25-70MM

    Sealing type 4 side sealing 44 side sealing 4 side sealing 3 side sealing 3 side sealing

    Film width Max.480mm Max.720mm Max.960mm Max.280mm Max.560mm

    Film thickness Laminated film  thickness:0.05--0.12mm Laminated film  thickness:0.05--0.12mm

    Cutting type 1.Flat Cutting;   2.Zigzag cutting;   3.Continuous cutting;   4.Customized special shape cutting

    Control system PLC+Servo+Touch screen PLC+Servo+Touch screen PLC+Servo+Touch screen PLC+Servo+Touch screen PLC+Servo+Touch screen

    Air consumption 0.8 MPA 0.6M3/MIN 0.8 MPA 0.6M3/MIN 0.8 MPA 0.6M3/MIN 0.8 MPA 0.6M3/MIN 0.8 MPA 0.6M3/MIN

    Power Supply 3.5KW,220V 50Hz/60Hz 5KW,220V 50Hz/60Hz 6.5KW,220V 50Hz/60Hz 4.5KW,220V 50Hz/60Hz 6.5KW,220V 50Hz/60Hz

    Dimension 1385*918*H2005mm 1685*1300*2005mm 1415*1686*2220mm 1385*918*2005mm 1685*1300*2005mm

    Weight 350KG 450KG 550KG 350KG 450KG

    Name Multi lane back side sachet packaging machine

    Item & Fill method 1.Liquid &Paste- pump, 2.Granule- Cup, 3.Powder-Auger

    Model SPMP-280B SPMP-560B

    Lanes number 2~6 lanes 4~12 lanes

    Capacity Max.35 bags/min/lane Max.35 bags/min/lane

    Volume Range 1~ 50ml 1~ 50ml

    Accuracy ±2% ±2%

    Bag size L:50-180MM L:50-180MM

    W:17-60MM W:17-60MM

    Sealing type Back side sealing Back side sealing

    Film width Max.280mm Max.560mm

    Film thickness Laminated film  thickness:0.05--0.12mm Laminated film  thickness:0.05--0.12mm

    Cutting type 1.Flat Cutting;   2.Zigzag cutting;   3.Continuous cutting;   4.Customized special shape cutting

    Control system PLC+Servo+Touch screen PLC+Servo+Touch screen

    Air consumption 0.8 MPA 0.6M3/MIN 0.8 MPA 0.6M3/MIN

    Power Supply 4.5KW,220V 50Hz/60Hz 6.5KW,220V 50Hz/60Hz

    Dimension 1385*918*2005mm 1685*1300*2005mm

    Weight 350KG 450KG
