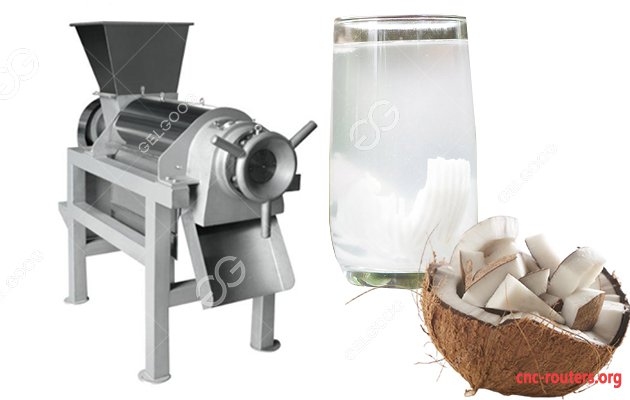

Stainless Steel Coconut Juice Extractor Machine

This stainless steel coconut juice extractor machine is suitable for squeezing apples, pineapples and other fruits after crushing.

1. Advanced design, compact structure, beautiful appearance.

2. The machine is composed of two parts, a crusher and a screw juicer, which can automatically complete the crushing, juice extraction and slag discharge processes.

3. It adopts conical screw, with large capacity and high juice yield.

4. High efficiency, energy saving, low noise and no pollution.

5. All parts in contact with materials are made of stainless steel;

The crushed coconut meat pulp, juice, and skin enter the double screw juicer through the feed hopper. As the bottom diameter of the screw increases along the slag outlet direction and the pitch decreases, when the material is screwed, the volume of the screw cavity shrinks. Form the squeeze of the material. The rotation direction of the screw spindle is counterclockwise when viewed from the feed hopper to the slag trough.

The raw materials are added to the hopper and pressed by the screw. The squeezed juice flows into the juicer at the bottom through the filter, while the waste is discharged through the annular gap formed between the screw and the pressure-regulated cone. The movement of the pressure regulating head in the axial direction is directly controlled by the hydraulic system.

Adjusting the pressure of the hydraulic system, that is, adjusting the resistance of the slag discharge, can change the juice yield, but if the hydraulic system pressure is too high, under strong squeezing, part of the slag particles will be squeezed out through the filter together with the juice, although the juice is discharged Increase, but the quality of the juice is relatively decreased, the size of the hydraulic system pressure should be determined by the user’s specific process requirements. So as to achieve the purpose of automatic separation of juice and residue.

If you want to get coconut juice from fresh coconut,we also have another type juice machine-coconut cut half juicer machine for your reference!!
