JTPB type mining lift winch
It is used for lifting coal, materials, lifting personnel and allocating materials and equipment, etc.
Product features, main applications and scope of application:This product is suitable for lifting coal, materials, lifting personnel and allocating materials and equipment in the shaft or inclined shaft of coal mine, and can also be used for other traction transportation.
Working principle:When starting the main motor, the rotor of the motor transmits the power to the high-speed axis of the reducer through the elastic coupling, and then transmits the power to the principal axis device through the driving and slowing down of the reducer through the gear coupling, if the steering of the motor is constantly changed, the reel can be twined or the steel wire rope can be loosened, so that the lifting container can make the periodic movement of up and down in the wellbore.

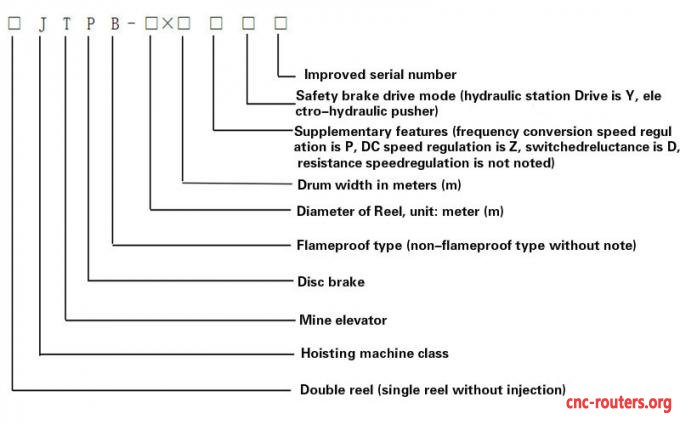

Representation of product model:The model representation method of lifting winch should accord with the provisions of MT/T 154.8-1996.
The diameter of the reel is 1.2 m, and the width is 1.2 m. The product model of the single reel disc sluice mining lifting winch which adopts non-explosion resistance speed control is: JTP-1.2 × 1.2.
ModelJTPB-1.6×1.5P
ReelNumber1
Diameter(m)1.6
Width(m)1.2
Center distance of two reels(m)/
Maximum static tension of steel wire ropeManned(KN)45
Zai Wu(KN)45
Maximum static tension difference of steel wire ropeManned(KN)45
Zai Wu(KN)45
Maximum lifting height or transport lengthA layer of winding(m)195
Two-layer winding(m)409
Three-layer winding(m)626
Wire ropeMaximum diameter(mm)26
Sum of breaking tension(KN)405
Reduction ratio31.5
Average lifting speed (m/s)4.0
MotorSpeed((r/min)990
Maximum power(KW)132
Outline dimension length x width x height5383×3000×2300
Theoretical weight of main engine(kg)13610
First, the lowest value of wire rope safety factor meets the following requirements:1,9 times for lifting personnel; 2.Lifting personnel and materials (9 times for lifting personnel, 9 times for mixed lifting, 7.5 times for lifting materials ); 3,designed for lifting materials 6.5 times.
Second, the ratio of the diameter of the drum and the diameter of the wire rope of the mine hoist should not be less than 80 times; the ratio of the diameter of the drum and the diameter of the wire rope of the mine hoist should not be less than 60 times.
The number of wire rope winding layers on the reel shall meet the following requirements:1, of well lifting personnel or the movements of personnel and material of winding 1 layer; designed for lifting material of winding 2 layer;2. Winding 2 layers of lifting personnel and materials in inclined shaft; designed for winding 3 layers of lifting materialsWinding 2 layers of lifting personnel and materials during well construction.
