Detailed Description
Double-head 1000L Bag Filling System Equipment | IBC Liner Bag Aseptic Filling Machine
This 1000 Litre Bag Aseptic Filling System Equipment | IBC Liner Bag Aseptic Filling Machine provides the highest possible level of sterility and productivity for filling IBC (Intermediate Bulk Container) liner aseptic bags. They are designed for packaging sterile fluids like tomato paste, vegetables and fruit juices, purees, particulates, concentrates, sauces, soups and dairy products.
The compact design gives you maximum aseptic safety while requiring a small aseptic zone. Nearly all crucial components are from world famous brands and it ensures the reliability of the machines. Weight or flow meters optional for volume control are to be employed.
Features:
1. PLC controlled with autognostic capability. Touch screen for operation, easy to use.
2. Grade 304 stainless steel body and 316L stainless fluid-contact parts.
3. Designed with CIP (Clean-in-Place) function and circuit connection.
4. Filling from side prevents condensed water dripping on bags (for more details, please check the end).
5. Decapping, filling and capping parts move in a sterile chamber with an overpressure of steam barrier which ensures the sterile conditions.
6. Steam barrier and sterilization by spraying of cap and feed gate with steam and hydrogen peroxide (optional) before decapping ensures a true aseptic filling.
7. A pressure sensor working with a pumping system ensures the stable overpressure inthe chamber.
8. A pumping system is available to for exhausting any pollution from the chamber.
9. The filling head come down to the right height (totally 3 heights set) automaticallywith the filled volume in the bag.
10. Reliable and in a high standard. All crucial components are from world famous brands.
Specifications:
Applicable bags: 1-inch-spout fitted, 200/1000 litre aseptic bags
(Spout is called "Gland" or "Flange" too.)
Filling capacity: 6-15 tons per hour.
Power: three-phase 380V/220V or customized, 8KW
Compressed air: 6-8 bar, 25NL/min
Food-grade steam: 5-8 bar, 50kg/h
Weight: 2400kg
Advantage of Double-head Aseptic Filling Machine:
Filling with 2 heads alternately can reduce backflow of the fluid in maximum, and then minimize the colour change and loss of nutritional ingredients from reheating.
Semi-automatic. Grade 304 stainless steel construction and grade 316L stainless steel fluid-contact parts. World famous brands of key components and many are imported. Made in China, but built in EU quality standard.

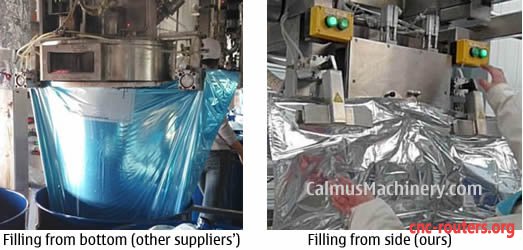

* Filling from side prevents condensed water dripping on bags.
Steam will become condensed water on the wall inside the sterile chamber. If filling from the bottom of chamber, condensed water will drip on the bags. Our fillers fill from side of chamber, condensed water will flow onto bottom inside the chamber and then flow out through the drain pipe.
Single-head IBC Liner Bag Aseptic Filling Machine is available.
