Product Introduction

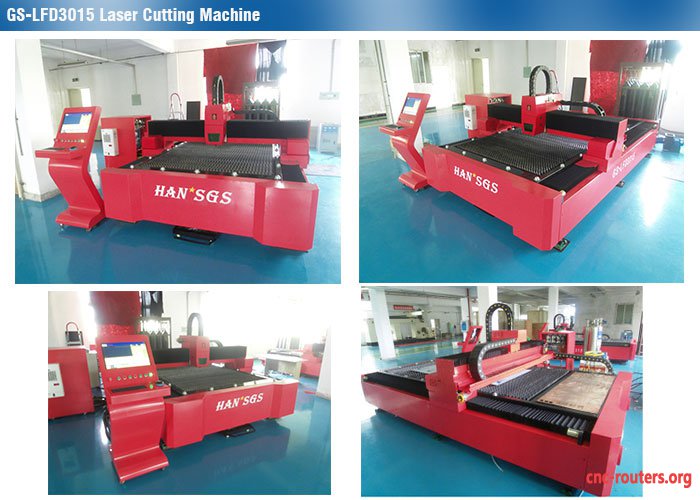

GS-LFD3015 double drive fiber laser cutting machine,cnc fiber sheet metal laser cutting machine,is high technology product intergreated of laser cutting, precision mechanism, digital control technical, adopting with large power laser source with international advance technology. The total product is sensational designed with excellent flexibility and performance, with international well-understand n brand of key parts, service motor, control system and others. The product has characteristic of high combination, more precision and stable running performance. It’s widely used in cutting and shaping industry for carbon steel, stainless steel and aluminum alloy, and regarded as best choice for metal cutting with high speed, high precision, high efficiency and high cost effective feature.
Parameters
Model GS-LFD3015(Dual Drive)
Output power of laser source 500-1000W
Cutting area (L*W) 3000mm × 1500mm
Z axle stroke 150 mm
Max. cutting speed 40m/min
Max. positioning speed 80m/min
Platform size/Max height of feeding material 4250x2500mm/more than 120mm
Cooling water cooling
Laser wavelength 1070nm
Cutting gap 0.1-0.3mm
Positioning accuracy of X, Y and Z axles ±0.03 mm
Repeated positioning accuracy of X, Y and Z axles ±0.02 mm
Drive model Imported servo motor
Voltage 380V,50/60Hz
Temperature 5ºC-45ºC
Continuous working time 24 Hours
Wok platform max beacall 600Kgs
Complete System Caboveage 4500x2700mm
Total protection level of power supply IP54
Advantages of sheet cutting machine:
1. Low cost: 30% photo-electric conversion efficiency, low power consumption.
2. Free maintenance: without reflective lenses, no taketo adjust laser route.

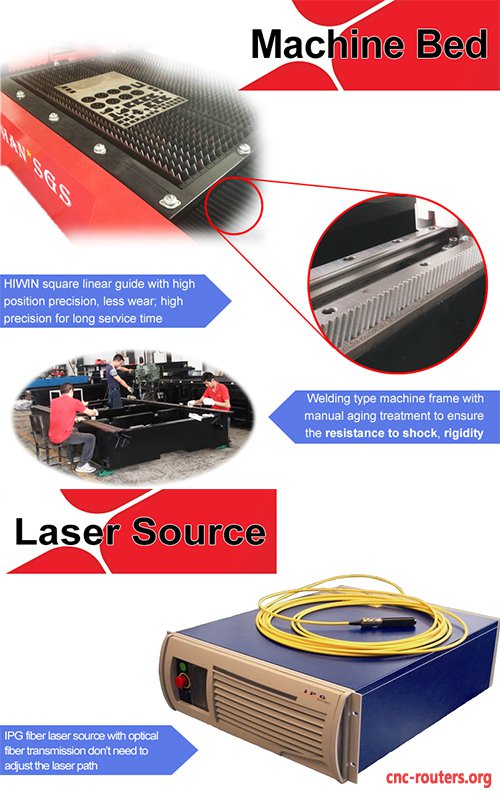

3. High speed: with IPG/ROFIN laser source, hing speed running.
4. High cutting quality: less deformation, flat and elegant surface.
5. High precision: Adopt high precision drive structure with imported service motor, ±0.03mm positioning precision.
6. Strong software: any shape, simple and convenient operation.
7. Compacted structure, small occupied area.
Functions of GS-LFD3015 laser cutter
1. Equipped with exhaust device, ownhealthy exhausting effect and small pollution.
2. Small occupied area, high system integration, convenient to operate and maintenance,24 hours continuous working.

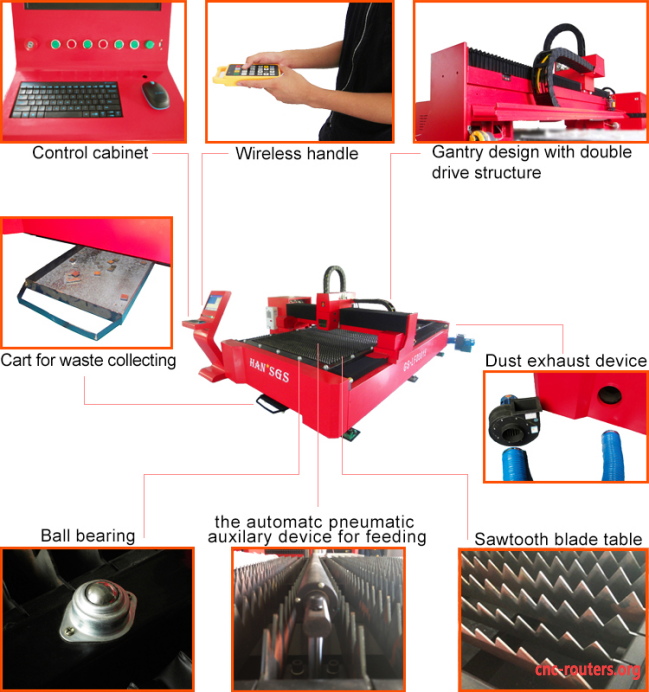

Features:
1.10mm Steel frame,more firmly
2.Single drive system,YASKAWA,helical gear drive.Drive quicker,more stable
3.Gantry beam,cast aluminum.High performance,no deformation,light weight and working quick
4.Control cabinet air condition,more secure,more intimate
5.Removable control cabinet,maintenance more convenient
6.Famous system,Beckhoff CNC Control System

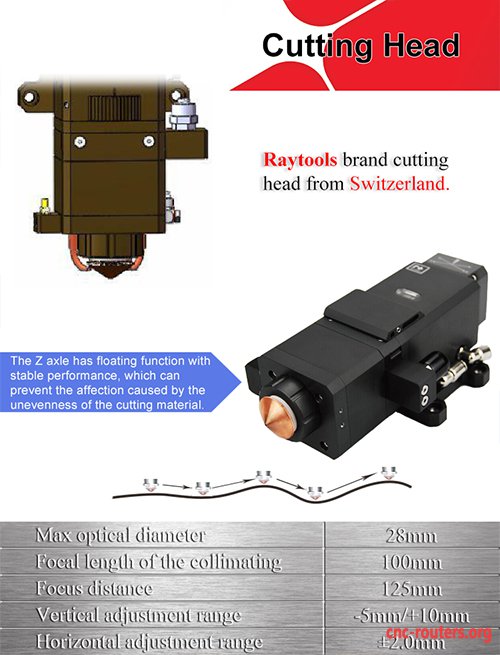

7.Safety protection of cutting head,focal length adjustment,drawer type protective lens
8.Cooling system,water cooling and air cooling
9.Lubrication system,manual one key lubrication and computer control automatic lubrication
10.Material protection feeding system,three sides pulley feeding and hydraulic pressure push rod feeding
11.Double dedusting system,more environmentally kind and safe.
12.Owns CE/ISO/TUV
Cutting Materials
