Metal Mould Engraving Machine (TZJD-6060MB)
1. Integrally cast lathe bed, firm and non-deforming, high rigidity
and high accuracy, adopts Taiwan line guide rail.
2. The gantry was confirmed and the working table can be move
manipulable, improve the working-efficiency.
3. Tool sensor system, save extra time to adjust the machine.
4. Use high speed drive motor, also servo motors for optional.
5. Memory function ensures the processing point when the blade is
broken or having to postpone the process.
6. With better compatibility, can math with many programs such as
Typle3, artcam, castmate, proE, Coreldraw/CAD, CAM. It achieves 2D
and 3D works easily.
7. This type machine can support these functions: Drilling/milling,
engraving/carving, cutting.
8. It widely used for small materials working, without noise &
high-power. Many gear speed regulation and control function &
Curve and linear speed independent control.
9. Water tank system on the body & water-cooled system
automatically.
Applicable materials:
Iron, stainless steel, copper, aluminum, plastic, marble, aluminum
plate, timber, KT board, ABS board, PVC board, acrylic, jade, sign
board, mould, bronzing, badge, pattern mould, art carve, coin dyes,
etc.
Metal mould engraving machine, CNC mould engraving machine, mould
CNC router, metal engraving machine, mould CNC engraving machine,
metal mold CNC machine, CNC router, mold carving machine, engraving
machine, CNC engraving machine;
v>
DescriptionParameter
TZJD-6060MB
Working Area (X*Y*Zmm)600mm*600mm*300mm
Max Engraving Speed 6000mm/min
FrameCast Steel
Spindle power(KW)1.5 KW/2.2KW/3KW
Max. Power Consumption(Without spindle)1.2KW
Spindle Speed 6000-24000rpm
Resolution0.005mm
Repeatability0.01mm
VoltageAC220V,50Hz/60Hz(option:AC110V,50Hz/60HZ)
Drive motorPanasonic Servo motor
Working Dictate G Code*.u00*.mmg*.plt
Operating systemLNC control system
Software environmentWindows98/2000/xp
InterfaceUSB
Flash memory128M(U Disk)
Software CompatabilityType3,,Ucancam,Artcam Software)
Diamerer of cutter3.175mm, 6mm, 12.7mm, 2mm,1mm, etc.
Running EnvironemtTemperature: 0-45
Relative humidity: 30%-75%
Machine necessaryDust cover system, control system integration shell, spindle cover, Japan Panasonic Servo motor, Auto-oiling system, Tool-sensor, water tank system, water-cooled system.

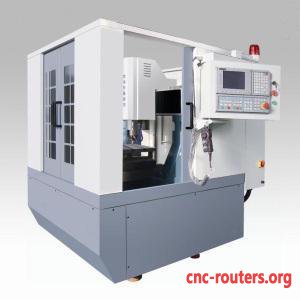

Metal Mould Engraving Machine (TZJD-6060MB) images
Tengzhou Jianda CNC Machine Co., Ltd.
Tengzhou Jianda CNC Machine Co., Ltd specialized in woodworking
machine, advertising machine, marble/stone engraving machine, laser
engraving cutting machine, metal mould machine, double heads
engraving machine, cylinder engraving machine, etc.
The company was one of companies that can research & develop
the advanced CNC Machines, which have laid the foundation in the
domestic market. Our machines have already exported to USA, Canada,
England, Australia, Russia, India and so on.
