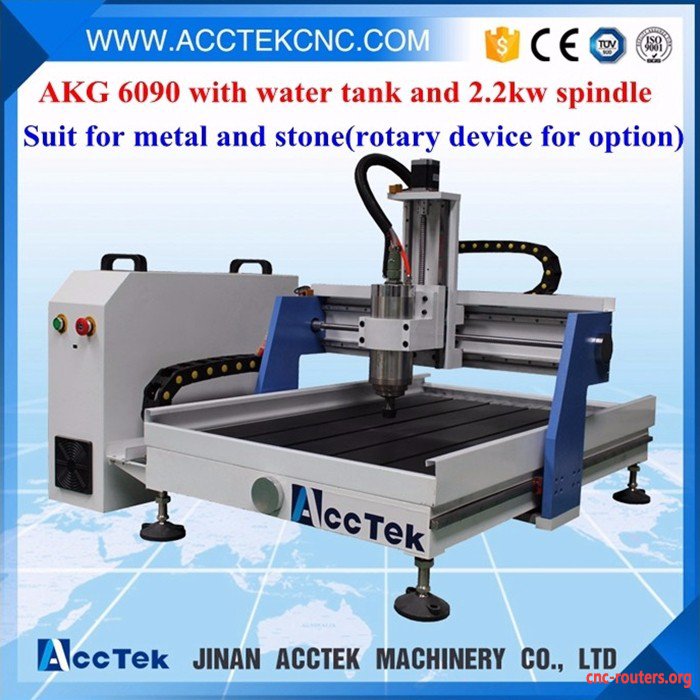

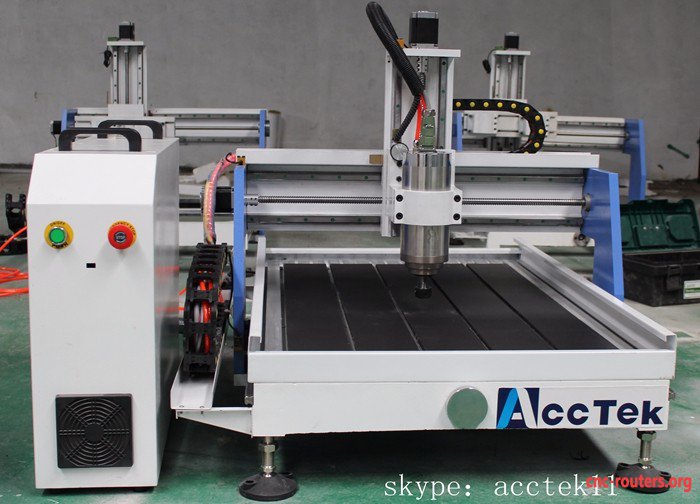

Agent wanted hot sale mini cnc router / sculpture wood carving cnc router machine AKG6090
No Description Parameter
1 X,Y,Z Working Area 600x900x150mm
2 Table Size 1270x870x710 mm
3 X,Y,Z Traveling Positioning Accuracy ±0.01/300mm
4 X,Y,Z repositioning Accuracy ±0.03mm
5 Table Surface T-slot Extrusions with water tank
6 Frame Cast Steel
7 X, Z Structure Ball Screw
8 Y Structure Hiwin Rail Linear Bearings and Ball Screw
9 Max. Rapid Travel Rate 6000mm/min
10 Max. Working Speed 4000mm/min
11 Spindle Power 1.5KW
12 Spindle Speed 0-24000RPM
13 Drive Motors Stepper System
14 Working Voltage AC220V/50/60Hz
15 Command Language G code
16 Operating System Mach3
17 Interface USB
18 Flash Memory 128M( U Disk)
19 Collet ER16
20 X,Y Resolution <0.01mm
21 Software Compatibility Type3 / Ucancam / Artcam
22 Net weight/Gross weight 190KG/230KG
23 Packaging size 1400*1050*1130mm
24 Running Environment Temperature: 0°C~45°C
Relative humidity: 30%~75%
Optional:
*Working area: 600*400*150mm / 400*400*150mm/600*1200*150mm
*Water cooling spindle power: 1.5kw/2.2kw/3.0kw/4.5kw
*Air cooling spindle power : 1.5kw/2.2kw/3.5kw/4.5kw
*Dust collector:
*Working table: vacuum table and vacuum air pump
*Working mode: auto tool changer
