Model:CC-M1212BG

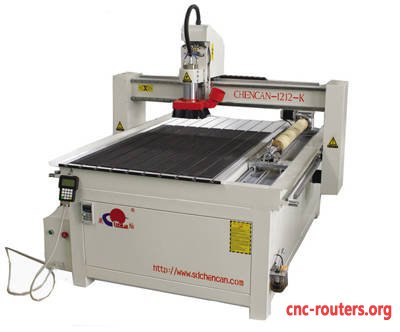

rotary wood carving cnc router
Features:
1 rotary CNC ROUTER has the 4th rotary system, so the machine can be cylinder working and plane working. The rotator adopts chuck and thimble structure.This excellent structure makes the machine have high precision.
2.Whole CNC router is welded with seamless steel structure, the stability is excellent, not easy to be deformed.
3.Three axes adopt imported high precision taiwan square orbit; X and Y axes adopt rack and pinion transmission, fast working, high efficiency and low cost; Z axis adopts Germany-made ball screw,with high precision and long life time.
4.Well compatibility: CAD/CAM designing software e.g. Type 3/Artcam/Cast mate/Wentai etc.
5.rotary wood router Has the function of re-carving after break point and power failure.
6.rotary wood router has the function of forecasting process time.
7. rotary wood router adopts advanced DSP system with USB connection, operated with the handle, convenient operation. Our engraver can completely work off-line and do not take any computer resources.
Description
Parameter
X,Y Zworking area
1200*1200*200MM
4th rotary axis diameter
200mm
Table size
1440*3040mm
Resolution
0.01mm
Lathe structure
Seamless welded steel structure
X,Y structure
Rack and pinion transmission,
Taiwan-made Linear orbit
Z structure
Germany-made ball screw
Max. idling speed
35m/min
Spindle motor power
2.2KW
Spindle rotate speed
0-24000r/min
Working voltage
AC380V/50Hz
Working mode
Stepper
Command
G code,HPGL,U00,mmg,plt
Operating system
DSP handle
Interface:USB
Flash Memory: 128M
Diameter of cutter
3.175-12.7mm
Cooling mode
Water-cooling
Dust-collect function:Yes
Work-holding
By clamp
Gross weigh:1200kg
multi function cnc router with cylinder engraver
wood cnc router
more details ,please contact me:
whatsapp/wechat/viber:+8615166985775
Spec CC-M1212BG
Quantity 100SETS
Price 0~9999
Package STANDARD EXPORT PLYWOOD CASE
