Machine features:
1. Particular style, competent for elaborate engraving and cutting.
2. 2.2KW water-cooled spindle motor.
3. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.
4. Be compatible with type 3, Artcut, Artcam software.
5. Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.
Technical parameter:
MODLE

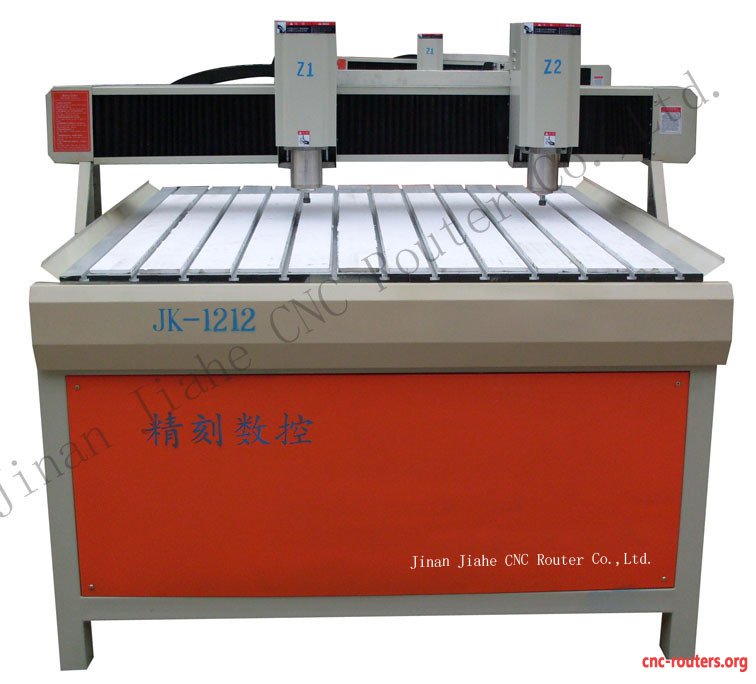

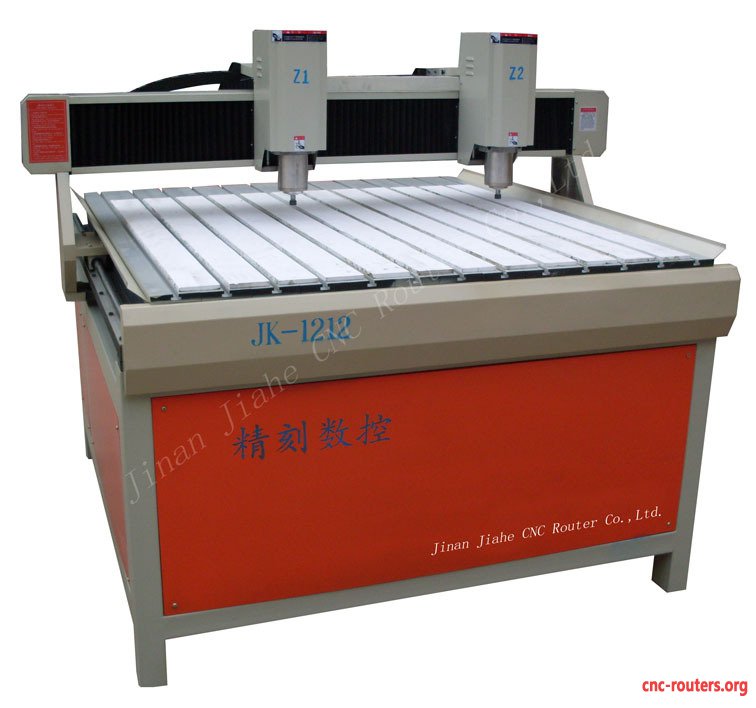

JK-1212
Work dimensions
1200 *1200*80mm
Body dimensions
1500 *1550*1500mm
Z-axis working area
80mm
Max. Feeding height
120mm or bigger
Cut thickness of material
40mm
Max. Speed
6000mm/min
Working speed
0 - 4000mm/min
Mechanical precision
0.01mm
Software
Artcam, Artcut, Type3 software
Max. Power consumption
1800W
Power source
AC 220/50Hz
Driver type
stepper motor
Spindle
2.2KW variable speed, water-cooled
Spindle speed
0 - 24, 000rpm
Blade diameter
1 - 6mm
Control system
DSP control system
Command
HPGL, G code, u00, mmg, plt
N.W.
450KG.
G.W.
500KG.
Packaging& Shipping
Package
Inner package: stretch film
Outside Package: Free fumigation wooden case for export
Shipping
Shipping: by ship from QINGDAO to Your port.
Certifications
CE Certificate & ISO9001 Certificate are available.
Our Services
1. Technical support online service provided.
2. Technical files service provided.
3. On-site training service provided.
4. Spare parts replacement and repair service provided.
