Glory Company Foam/Wood Mould Making CNC Router
Highlight:
This machine is specially used for engrave large non-metallic mould, especially automotive foam mould, wooden ship mould, aviation and train wood mould. And wood mould casting, food mould (e.g. moon cake mould) and other mould making.
Key features:
1. Seamless steel lathe bed
2. Germany ball screw
3. Helical rack and pinion
4. Well compatibility: type 3, castmate, artcam, etc
5. Re-carving function after power failure
6. Servo motors
7. Manual oil-injection system
8. Syntec operating system
9. X and Y axis is equipped with dust-proof cover
10. High soft electric cables
11. French small electric parts
12. Protective balance cylinders for Z axis
Ideal for:
1. Timber, wood
2. EPS (any kind of foam)
3. Plastics, MDF
4. Aluminum composite
5. Soft metals
6. Acrylic and much more
Processing effect:
Engraving, cutting, drilling, milling, enchase, relief, etc.
Standard sizes:
1200*2400mm
1300*2500mm
1500*3000mm
2000*3000mm
3000*4000mm
SPECIFICATION
GY-BS2030B
Working Area
(X Axis)
2000mm
Working Area
(Y Axis)
3000mm
Clearance (Z Axis)
1000mm
Machine Dimension
2300*4000*1100mm
Spindle
Air-cooled 9kw HSD
Spindle Speed
Adjustable 0-24,000 rpm
Tool Change
Manual Tool-Change
Drive System
(X & Y Axes)
Helical Rack & Pinion, 1.5 module
Linear Guide
Taiwan Hiwin 30mm
Drive System
(Z Axis)
Germany ball Screw
Drive Motors
Servo motors, Yaskawa
(three 1.3kw motor for X, Y axis, one 850w for Z axis)
Inverter
Delta
Driver
Yaskawa
Command
G code
Cutter diameter
φ3.175-φ20mm
Maximum Travel Speed
50m/min
Maximum Working Speed
30m/min
Precision
0.01mm
Table Top
Aluminum T-slot table protected with PVC
Controller
Taiwan Syntec
Power Requirements
3-phase 380V/50HZ
Custom sizes and upgrades for the components are available on request.
Optional parts:
1. NC Studio controller
2. Added rotary axis
3. Automatic oil-injection system
4. Higher gantry
5. Water-cooled spindles, etc.
Service & guarantee:
1. Technical supports and suggestions before you order a machine according to your work piece.
2. Professional instruction for the operation of the machine
3. One year warranty, we will provide the consumable parts at cost price after the warranty period. (We suggest you order a few extra consumable parts together with the machine)
4. Our technician will come to your workshop if the problems can not be fixed through Internet or phone communications.
5. 24-hour technical support by email or calling.
Skype: jeanh007
Email: jeanhglory at gmail dot com
gloryjeanhou at gmail.com
Product Tags: Mould Making CNC Router cnc molding machine foam cutting machine

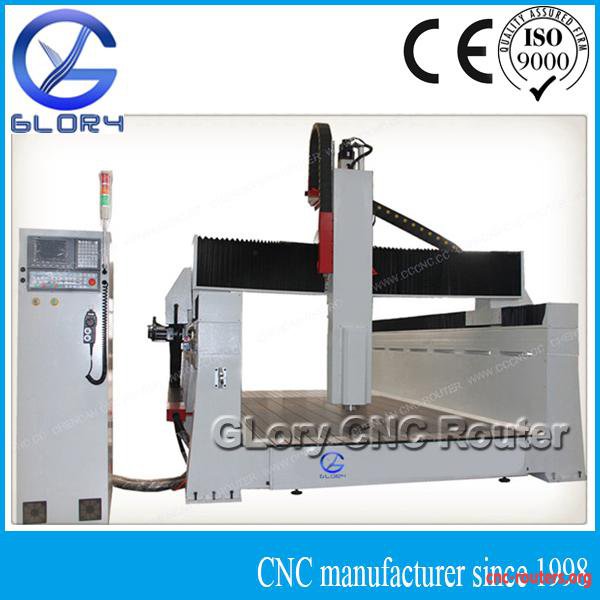

Glory Company Foam/Wood Mould Making CNC Router images
Jinan Glory Import and Export Trading Co.,Ltd
Jinan Glory Import and Export Trading Co.,Ltd, with our own 1998
established factory, all the machines have been certified by ISO
and CE. Every mechanical part is produced by our America imported
machining center, each electrical part and other accessories are
strictly tested. Machines need to be done a 72-hours inspection by
our QC before package and shipment.
Meanwhile, our R&D staff and international sales will provide
24 hours online service to make sure you will get the superior
quality, most suitable and cost-effective machines.
Located in Qihe Economic Development Zone, Shandong Province, our
factory occupies 20,000 square meters, with 13,000 square meters of
modern plant and the total assets of nearly 100 million RMB Yuan,
has more than 200 employees and 90 professional and technical staff
from all kinds of disciplines. More than 100 sets of machinery
equipments including Numeric Control Production Center (NCPC),
Large Digital Boring Machine and Planing Machine, allows Glory to
have a strong machining capability to manufacture all CNC Router
products on its own.
