JK-2030W Wood CNC Router adopts new designed structure and high precision linear guide rails and gear racks. This machine can work for engraving and cutting wood door, MDF, wood cabinet, plastic, PVC, etc.
1. Features and Advantages:
1. Welded Steel Tube Structure, reliable and durable, stable and long-life.
2. X Y Z uses 25mm PMI or HIWIN linear square guide rail, it is more stable and has longer life than normal round one.
3. Z axis use 25mm high precision ball screw and can avoid spindle suddenly up and down.
4. Stepper motor and driver, higher precision. Break point memory can stop work with wrong signals and avoid the waste of materials.
5. Chinese Fuling inverter control the spindle speed.
6. Uses NcStudio or DSP control system, easy and convenient to operate.
7. Many optional configuration and OEM service are available.
2. Specifications:
Model JK-2030W
Machine body Heavy duty T-slot
table Aluminum extrusion fixture table
X Y Z rail PMI/HIWIN linear square guide rail
X Y transmission Rack and pinion
Z transmission High precision ball screw
Spindle 4.5KW/5.5KW air cooling spindle
Spindle speed 24000rpm
Inverter Fuling inverter
Motor Stepper motor
Driver Stepper driver
Transformer Yes
Lubrication Yes
Max. speed 30m/min
Max. working speed 20m/min
Voltage AC 380V 50HZ three phase
Collets ER25 3.175-16mm
Repeat reposition accuracy 0.025mm
Max. cutting thickness <=20mm
Cover X Y Z cover
Command G code
Software Artcam/ Ucancam
Control system NcStudio
Dust collector Yes
Remark Optional driving mode:
Servo motor and driver
Optional control system:
DSP

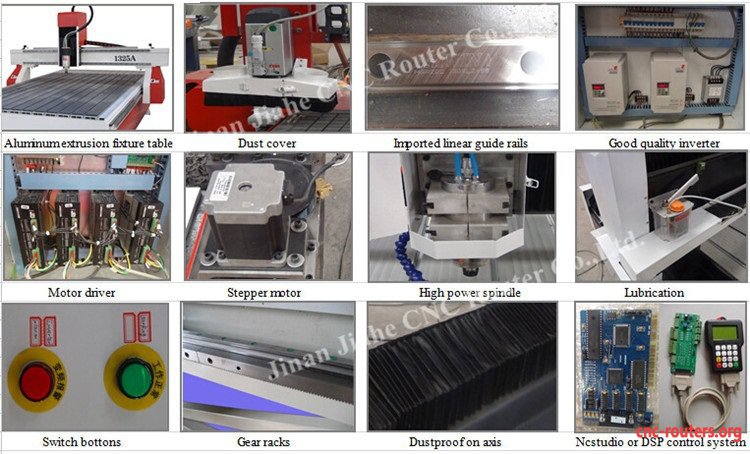

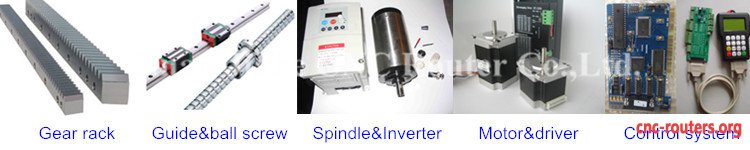

3. Standard Accessories:

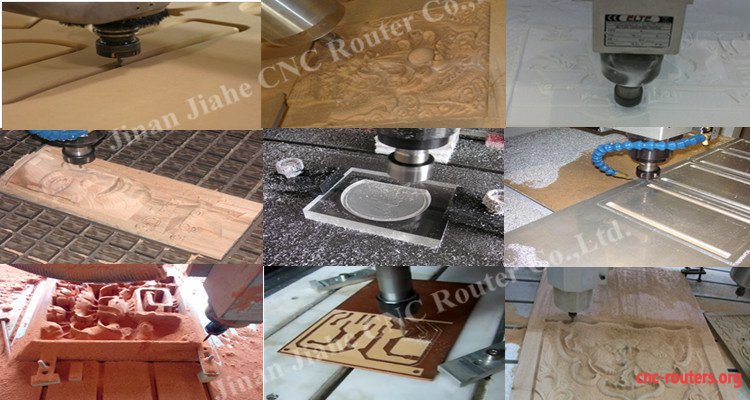

4. Wood CNC Router Working Show:

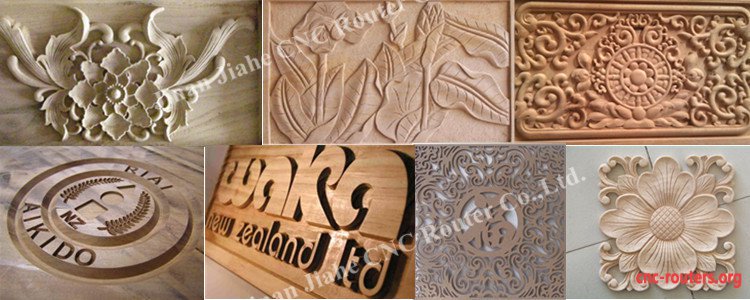

5. Wood CNC Router Engraving Samples:

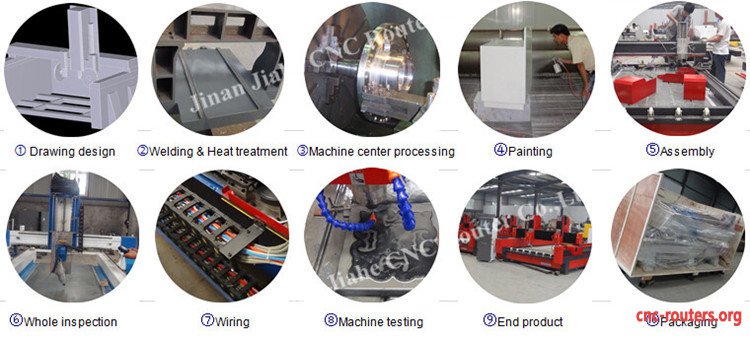

6. CNC Router Manufacturing Process:

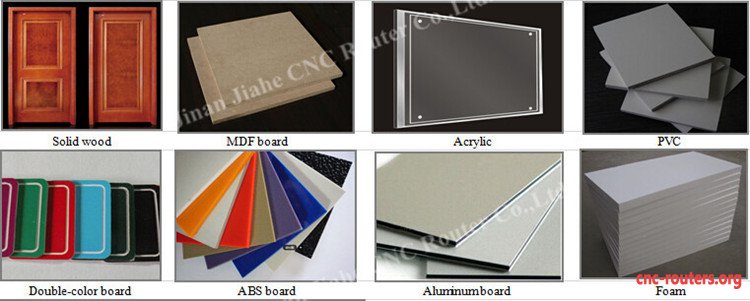

7. Applicable materials:
Application material: JK-2030W Wood cnc router is good at engraving letter and designs and cutting on all kinds of wood, MDF, Acrylic, PVC, plastic, etc.
Certifications
