CNC Woodworking Machine/Wood CNC Router with Nk 200 Controll

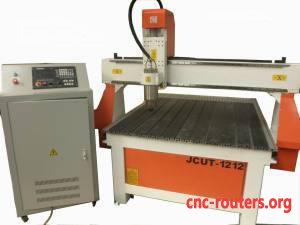

CNC Woodworking Machine/Wood CNC Router with Nk 200 Controlling System ---- (JCUT-1212B)

MDF Cutter machine with 3.9 feet x 3.9 feet----( JCUT-1212B )
Applications:
Can be used on advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.
Key point:
Please kindly tell us your engraving or cutting materials, and materials' size.
Then we can quickly check and recommend to you the right machine with right working area.
Parts for free:
Software in CD, Controlling Card (PCI card), Water Tank, Water Pump, Engraving Tools, Data Wire, Power Line, Brush, Spanner and Clamp.
Option accessories:
1. Rotary axis
----For engraving on cylindrical shape materials. Please kindly tell us your cylindrical shape materials' length and diameter. Then we can add right rotary axis to the machine.
2. Vacuum table (contain vacuum pump and vacuum pipes)
----For fixing the materials on the working table, especially for bigger working table.
After added vacuum table, the voltage will need to be 3 phase/380V.
3. Dust collector (contain dust collector pump and dust collector pipes)
----For sucking away the dusts, such as wood dusks and so on.
Freight:
We can send this machine to your port or door address by sea or by air. Do as you need.
If sending to your port, please tell us your port.
If sending to your door address, please tell us your address, and better with post code.
Warranty:
One year for machine&
v>

JCUT MODELJCUT-1212B CNC Router

Working Area (X*Y*Z)1200X1200X150mm(47.2X47.2X5.9 inch)

Processing accuracy0.01mm

Repositioning accuracy0.03mm

Spindle4.5KW variable speed, water-cooled

Spindle rotating speed0-24000rpm/min

Max Moving Speed18000mm/min

Working speed0-10000mm/min

Driving modeZ-Ball screw, XY-Rack drive

VoltageAC220V/50Hz

Max. Power consumption5.3KW

Feeding Height200mm

Drive motorStepper

CommandG. code, mmg, plt, uoo, HPGL

Compatible SoftwareType3, Artcut, ArtCAM, masterCAM software

CertificateCE, FDA

Pack dimensions1850mm X 1850mm X 1850mm wooden trunk

Net weight800KG

Jinan JCUT CNC Equipment Co., Ltd.

Jinan JCUT CNC Equipent Co., Ltd., lies in Jinan city, is a new technology enterprise which is specialized in developing and manufacturing Mechanical CNC engraving machine, CNC Laser machine and CNC Woodworking machine. We supply global market with high quality and reasonal price. We have the first class reaserch and development center and professional technician. With many years hardworking and perfect management, we have been improving SuperStar products.
We have three main series machines and 20 models to meet different requirments, such as CNC engraving and cutting router, 3D woodworking routers, laser engraving machine etc. With excellent designs, good characteristics, we enjoy high reputation in the world. At the same time, our machines are exported to USA, England, France, Germany, Canada, Russia, India, Southeast Asia, Middle East and so on. On the basis of absorbing the international advanced CNC technology, our company has developed laser engraving machine, laser cutting machine and marking machine, which are mainly based on the CO2 laser.
They are widely used in advertising, engraving, shoes samples, garments, rubber molding, and arts and crafts fields. Our principle: Good quality is the life of our company; New technology is the basis of our development; Innovation is the key of our progress and the good after-sale service gains the wide market for us. We sincerely look forward to establishing friendly business relations with the customers and hope to develop together.
