Mini ATC Wood CNC Router AW-6090ATCL
Mini ATC Wood CNC Router machine with 6 tools
MACHINE FEATURES:
1) Linear Automatic Tool Changer, with 6 tools.
2) NK260 Control system, separate control panel, easy and
convenient to operate
3) ISO 2.2KW Spindle, High-speed water cooling spindle
4) adopt Taiwan Delta servo motor, high performance subdivision
driver, to ensure to work stably for a long time.
5) Taiwan Linear guiderail, high precision and long lifetime
6) Ball Screw transmission for X,Y,Z axis
7) Water cooling system, including nozzle, water pump and stainless
steel water tank
8) Weld steel structure of machine, stable, fast speed and high
accuracy.
9) Adopt advanced CNC system (NCstudio or DSP control system), This
system have break point memory mode and special saving mode of
different points so that can make sure continuous working after
electronic drop or other postpone situation. This function can
guarantee the processing precision of long time operation. It is
configured with practical and easily-learned software, which can
conveniently check the moving path of tool, and adjust the
processing depth of Z axis and the speed of motor.
10) Option: Stainless steel water tank is suitable for the
processing of hard materials, such as metal, glass, marble and so
on.
TECHNICAL PARAMETERS:
NO.
Description
Parameter
1
Model
AW-6090ATCL
2
Working Area (X*Y*Z)
600X900X80mm(23.6X35.4X3.1 inch)
3
Working table
Aluminum T-slot +PVC
4
Feeding Height
80mm
5
Driving mode
Ball screw for X,Y,Z axis
6
Processing accuracy
0.01mm
7
Repositioning accuracy
0.05mm
8
Spindle
2.2KW variable speed , water-cooled(other bigger spindle is optional)
9
Spindle rotating speed
0-24000rpm/min
10
Max Moving Speed
6000mm/min
11
Working speed
0-5000mm/min
12
Voltage
AC220V/50Hz
13
Drive motor
Delta servo motor, (stepper motor, other servo motor optional)
14
Controller
Ncstudio system
15
Command
G.code,mmg,plt,uoo,HPGL
16
Compatible Software
Type3, Artcut, ArtCAM, masterCAM software
17
Certificate
CE
18
Package dimensions
1400mm X 1250mm X 1600mm wooden box
19
Net weight
280KG
Product Tags: mini cnc router sell cnc router wood engraving machin

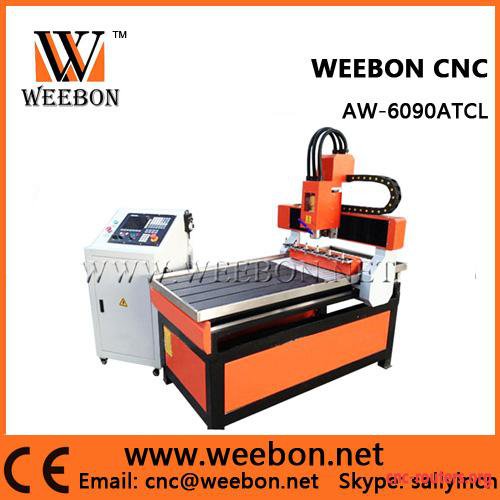

Mini ATC Wood CNC Router AW-6090ATCL images
