We use bakelite to make the vacuum table and we choose Germany
Becker pump (KVT series).
Excitech CNC Router SHM1325A Features
3.0KW HSD Spindle (Option: 6KW HSD Spindle, 3.5KW Chinese Spindle)
Vacuum Table (Option: T-Slot Vacuum Table)
Taiwan Delta Inverter
Japanese THK Linear Rail
Stepper System (Option: Servo System)
Option: Pump (Becker or Chinese)
Optional Model: SHM1530, SHM2030, SHM2040 etc.
-
-
Working Area: 1300*2500*200mm
Table Size: 1260*2500mm
Table Structure: Vacuum Table (Option: T-Slot Vacuum Table)
Transmission: X, Y-Rack Pinion Z-Ball Screw
Speed: -MAX Travelling Speed: 32000mm/min
MAX Working Speed: 15000mm/min
Spindle Power: 3.0KW HSD Air Cooling Spindle (Option: HSD 4.5/6.0 KW Spindle)
Spindle Speed: 0-18000rpm/min
Driving System: Stepper Motor (Option: Taiwan Delta Servo Motor)
Working Voltage: AC380V/3PH/50HZ (Option: AC220V/3PH/50Hz)
Operating System: DSP (Option: NC STUDIO)
Net Weight: 1100KG
Gross Weight: 1250KG

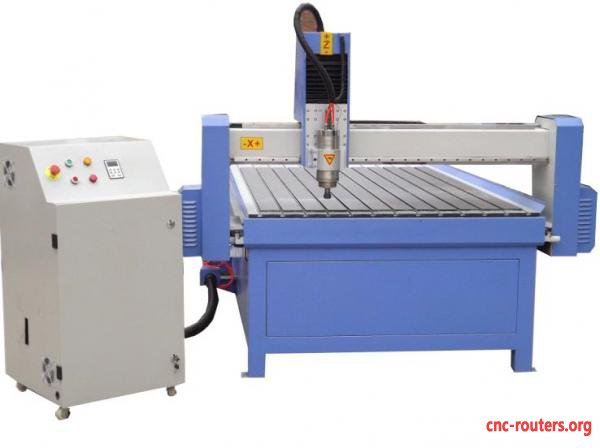

Excitech CNC Router SHM1325A
We offer a comprehensive range of highly-efficient products
catering for the needs of different sectors. With resolute
management, professional research and development team and
motivated personnel, we aim to be the world market leader.
Our products
In the non-metallic fields of wood-working, furniture, mould
industry and advertising, we present you the finest CNC Routers
with competitive price. All our products feature
solid structure, best quality components, superior machining
techniques and complete reliability. We hold a safe lead in the
production and sales of the processing center.
Our presence
We market our products through a strong and comprehensive sales
network extending to the whole world market, including but not
limited to the USA, Russia, Australia, Middle
East, South America and South East Asia. Our global presence has
earned us increasing market share both at home and abroad.
Our philosophy
Deeply rooted in our company's philosophy is customer orientation,
which is achieved through the concentration of technical know-how,
combination of highest quality components,
integration of advanced machining techniques, excellence in
technological innovation, extension of sales network and
specialization of after-sale service. We are always here to
provide the most economical and reliable solution to our customers.
Opt for Excitech--opt for quality, service and success.
