Product Detail
Company Info
Quick Detail
Place of Origin
China [CN]
Brand Name
China-Base
Model Number
CB-PPR-T006
HS-CODE
3917-40
Package & Delivery Lead Time
Package
1
Delivery Lead Time
30
Detailed Description
Introduction

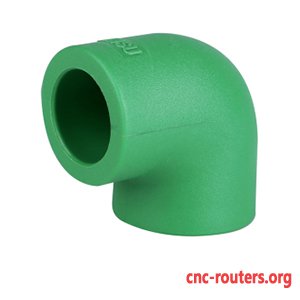

Product Name: PPR Pipe Fittings PPR 90° Elbow Color: Green Grey Blue White Etc.
Size: 20-160mm Standard: ISO15874 And DIN8007/8078
Application: Cold Or Hot Water Supply Non-toxic: No Heavy Metal Additives
Packaging Details: Standard Exported Packing Or As Customer Request OEM&ODM: Available
Connection: Welding Other Name: Plumbing Material In China
90° Ppr Pipe Fittings Elbow Size 20 - 160mm No Heavy Metal Additives ISO9001 CE OEM
Color: Green White,Grey ,etcSurface: SmoothPressure Rating: PN20Size:20mm-160mmOEM AvailableStandard: ISO 15874: DIN8077-8078Production temperature: -40 - +95°CCertification: ISO9001
Applications:
1) Water supply systems: civil and industrial constructions, in residential buildings, hospitals,hotels,school and office buildings, ship, building
2) Drinking water systems & food industry pipe works
3) Central air conditioning system
4) Irrigating system for gardens and green houses
5) Public and sport facilities: swimming pools & stadiums
6) Rainwater utilization systems
1.Material : PPR
2.Color: White, Gray, Green, or as you required.
3.Size: 20-160mm
4.Logo: OEM or customized
5.MOQ: According
6.Samples Time: (1)4-5days-If you want to customize your logo.
(2)1day-For our existing samples for reference.
7.OEM Accepted Yes
8.Certification available: Yes
9.Packing Details: Carton, standard export packing
10.Production Capacity: 5,000,000pcs Per month.
11.Payment Term: (1) L/C,T/T,D/P
Permissible Working Pressure And Longevity
Working pressure(bar) Temperature ℃ Working year(H/Y)
Cold water 0 to10 transient To 25 8760
Hot water 0 to10 transient To 60 8710
To 80 50
For Pootable Water Installations
Temperature Service life Safety-factor=1.5
SDR 11 SDR 9 SDR7.4 SDR 6
Nominal Pressere
PN10 PN12.5 PN16 PN20
Permissible Working Pressure
20℃ 1 15.0 18.9 23.8 30.0
10 13.7 17.3 21.7 27.2
50 12.9 15.9 20.4 25.7
40℃ 1 10.8 13.6 17.1 21.2
10 9.2 12.4 16.0 20.2
50 9.2 11.5 14.5 18.8
50℃
1 9.2 10.8 14.5 18.310 8.2 10.5 13.1 16.5
50 7.7 9.8 12.2 15.4
60℃ 1 / / 12.2 15.4
10 / / 11.0 13.8
50 / / 10.1 12.7
75℃ 1 / / 9.9 12.3
10 / / 7.5 9.3
25 / / 6.1 7.5
SDR=Standard Dimension Ratio(diameter/wall thickness)SDR=d/s(S=Pope series index from ISO 4065)
Feature1. Sanitary & non-toxic;2. Corrosion resistant & not scaling;3. High temperature resistant & high pressure resistant;4. Heat preservation & energy efficient;5. Light weight;6. Elegant appearance;7. Convenient & reliable installation;8. Long service life: over 50 years
Our advantages
1). 15 Years' Experience in production
2). accept OEM Order
3). ISO9001 approved
4). We use All New raw material in products
5). Sufficient products with complete specifications for your choice
Payment term :LC ,TT .OA DP
Delivery time : 20days /20 feet container , 35days/40 HQ
Samples lead time: 3-7 days
MOQ: 100-5500pcs
Product Detail
Company Info
Basic Company Information
China-base Tubing Industry Co.,Ltd
TEL : 86-0854-6860618 / FAX : --
NO.666 TianTong South Road, Yinzhou district, Ningbo, China zhejiang Ningbo China [CN]
Homepage :
Main Products
PPR Pipes , PPR Fittings manufac , PPR plastic pipe sy , PPR Pipe systems , PPR Pipe systems
