JK-3030 Mini CNC Router adopts new designed structure and high precision linear guide rails and ball screws. This machine can work for engraving letter and designs Carving Artware, Metal, Wood, etc.
1. Features and Advantages:
1. Cast aluminum machine body, small and easy to move.
2. X Y Z uses PMI or HIWIN linear guide rail, it is more stable and has longer life than normal round one.
3. Z axis use hign precision ball screw and can avoid spindle suddenly up and down.
4. Stepper motor and driver, higher precision.Break point memory can stop work with wrong signals and avoid the waste of materials.
5. 1500w inverter control the spindle speed.
6. Adopt 800w water cooling spindle, which is suitable for long time and high temperature working.
7. Uses NcStudio or DSP control system, easy and convenient to operate.
8. Many optional configuration and OEM service are available.

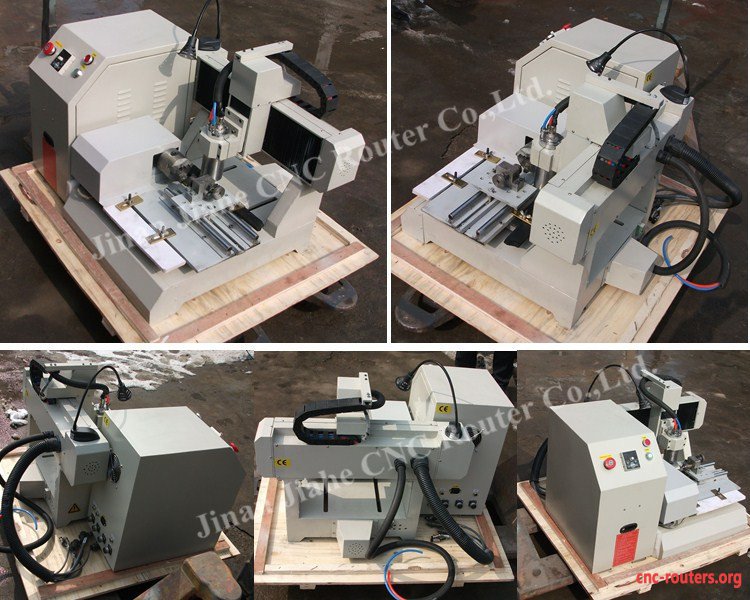

2. Detailed pictures of Mini desktop cnc router JK-3030 in factory:
3. Specifications:
Model JK-3030
Machine body Cast aluminium
Working area(XYZ axis) 300*300*120mm
Moving type Table moving
X Y Z rail PMI/HIWIN linear square guide rail
X Y Z transmission High precision ball screw
Spindle 800w spindle
Spindle speed 24000rpm
Inverter 800W inverter
Motor Stepper motor
Driver Stepper driver
Transformer Yes
Lubrication Yes
Max. speed 8m/min
Max. working speed 4m/min
Voltage AC 220V/AC 380V 50HZ
Collets ER11 3.175-6mm
Repeat reposition accuracy 0.01mm
Cover X Y Z cover
Command G code
Software Artcam/ Ucancam
Control system NcStudio
Remark Optional driving mode:
Servo motor and driver
Optional control system:
DSP

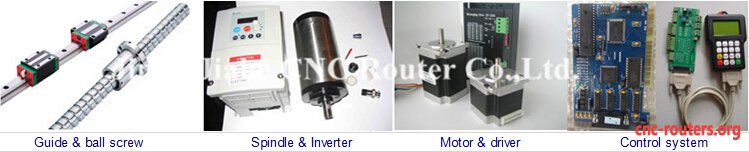

4. Standard Accessories:

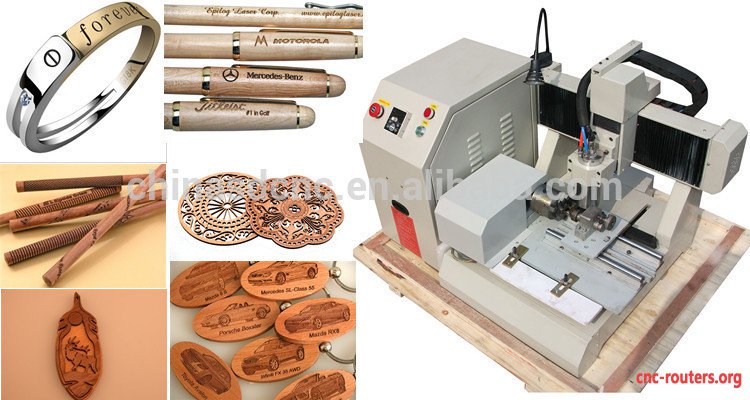

5. Engraving Machine Engraving Samples:

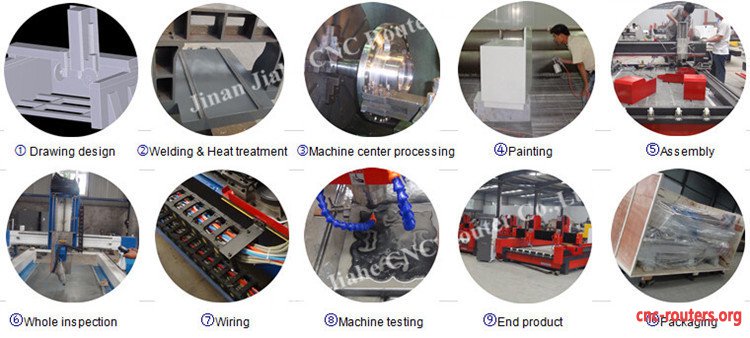

6. CNC Router Manufacturing Process:
10 main steps to produce one high quality CNC Router
7. Applicable materials:
is good at engraving letter and designs on all kinds of metal material, for example, iron, steel, copper, aluminum, gold, etc.
Packaging& Shipping
Inner package: stretch film
Outside package: free fumiigation wooden case for export
Shipping: by ship from Qingdao port to your port.
